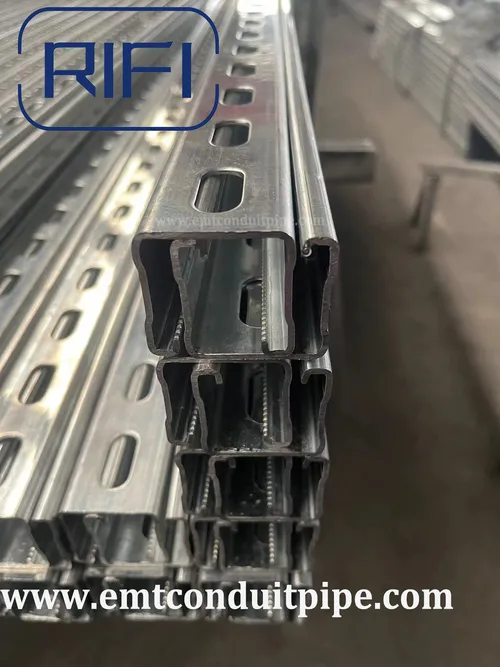

RIFI Unistrut C-channel sizes
Materials: RIFI Unistrut C-channels are typically made from materials such as steel, stainless steel, or aluminum. Steel channels are often hot-dip galvanized for corrosion resistance, while stainless steel channels offer durability and corrosion resistance in harsh environments.
Sizes: RIFI Unistrut C-channel comes in a variety of standard sizes, with common dimensions for the width (from 1 5/8 inches to 12 inches), depth (from 1 5/8 inches to 6 inches), and thickness (gauges typically ranging from 12 to 18). Lengths can vary but are often available in standard lengths such as 10 feet or 20 feet.
Here below are RIFI steel unistrut C channel size chart:
| RIFI CAT#NO. | SURFACE FINISH | SIZE | THICKNESS | Length | |||
| / | / | US | METRIC | US | METRIC | US | METRIC |
| P4121 | PRE-GALVANIZED | 1-5/8"*13/16" | 41MM*21MM | 16ga/14ga/12ga | 1.5mm/1.9mm/2.7mm | 10ft/ 20ft / custom | 3 meter / 6 meter/custom |
| P4141 | PRE-GALVANIZED | 1-5/8"*1-5/8" | 41MM*41MM | 16ga/14ga/12ga | 1.5mm/1.9mm/2.7mm | 10ft/ 20ft / custom | 3 meter / 6 meter/custom |
| P4141X2 | PRE-GALVANIZED | 1-5/8"*1-5/8" BACK TO BACK | 41MM*41MM BACK TO BACK | 16ga/14ga/12ga | 1.5mm/1.9mm/2.7mm | 10ft/ 20ft / custom | 3 meter / 6 meter/custom |
| P4162 | PRE-GALVANIZED | 1-5/8"*2-7/16" | 41MM*62MM | 16ga/14ga/12ga | 1.5mm/1.9mm/2.7mm | 10ft/ 20ft / custom | 3 meter / 6 meter/custom |
| P4162X2 | PRE-GALVANIZED | 1-5/8"*2-7/16" BACK TO BACK | 41MM*62MM BACK TO BACK | 16ga/14ga/12ga | 1.5mm/1.9mm/2.7mm | 10ft/ 20ft / custom | 3 meter / 6 meter/custom |
| H4121 | HOT DIP GALVANIZED | 1-5/8"*13/16" | 41MM*21MM | 16ga/14ga/12ga | 1.5mm/1.9mm/2.7mm | 10ft/ 20ft / custom | 3 meter / 6 meter/custom |
| H4141 | HOT DIP GALVANIZED | 1-5/8"*1-5/8" | 41MM*41MM | 16ga/14ga/12ga | 1.5mm/1.9mm/2.7mm | 10ft/ 20ft / custom | 3 meter / 6 meter/custom |
| H4141X2 | HOT DIP GALVANIZED | -5/8"*1-5/8" BACK TO BACK | 41MM*41MM BACK TO BACK | 16ga/14ga/12ga | 1.5mm/1.9mm/2.7mm | 10ft/ 20ft / custom | 3 meter / 6 meter/custom |
| H4162 | HOT DIP GALVANIZED | 1-5/8"*2-7/16" | 41MM*62MM | 16ga/14ga/12ga | 1.5mm/1.9mm/2.7mm | 10ft/ 20ft / custom | 3 meter / 6 meter/custom |
| H4162X2 | HOT DIP GALVANIZED | 1-5/8"*2-7/16" BACK TO BACK | 41MM*62MM BACK TO BACK | 16ga/14ga/12ga | 1.5mm/1.9mm/2.7mm | 10ft/ 20ft / custom | 3 meter / 6 meter/custom |
If you have any inquiry , pls contact us now sales01@china-elewell.com for more information .
